VW & Embedment Type Strain Gauge
-
Payment
T/T
-
MOQ
10 Set
-
Supply Ability
1,000 Set per One-Time
-
Supply Details
Customization Sample Order
Depend on quantity
-
Country of sale
Asia, Americas, Europe, Middle East, World Wide
-
PRICE
-
FOB
USD 10.00 ~ 1,000.00
(1 Set)
-
ITEM SPECIFICS
-
Brand
Model SJ-2200Sung Jin Geotech
-
origin
Republic of Korea
-
Size(Capacity)
Min 1,000 ~ Max 4,000με
-
Features
Measurement Frequency 400 ~ 1,250Hz
-
Function
Vibration wire type
PRODUCT DESCRIPTION

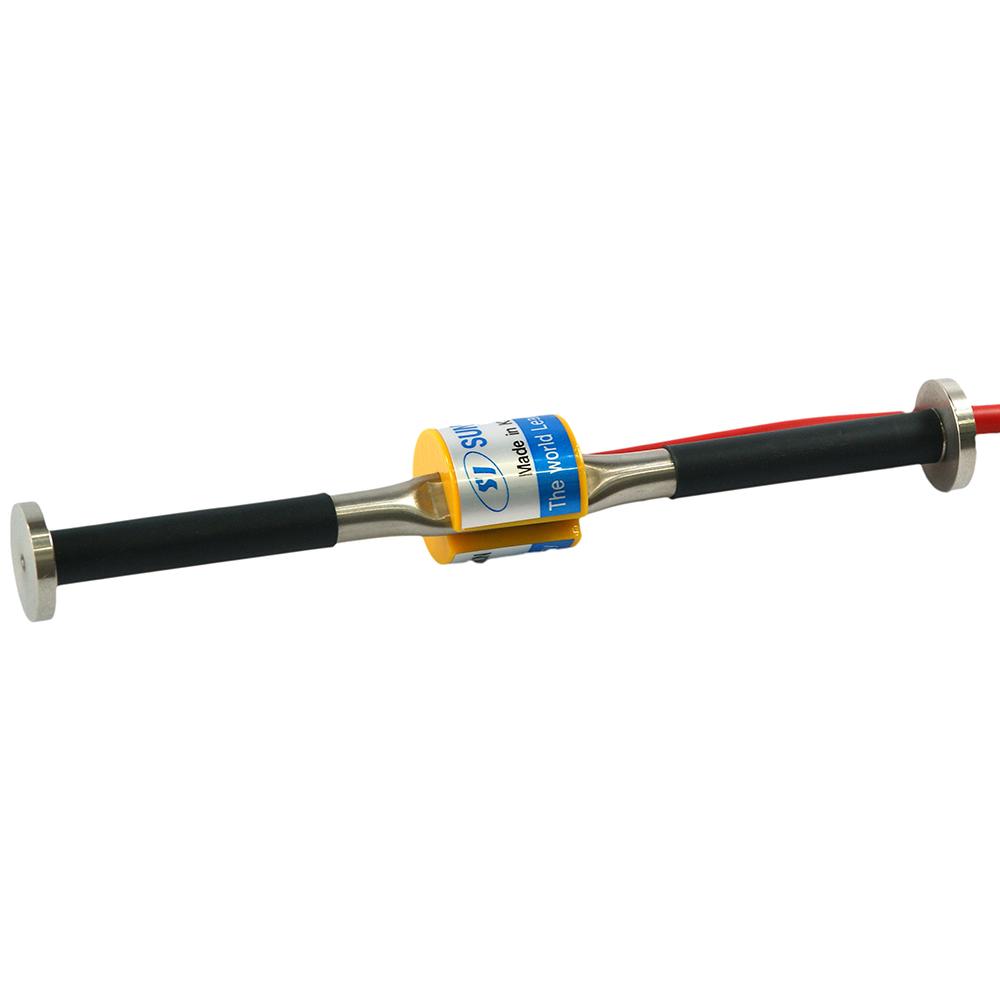

VW & Embedment Type Strain Gauge
Description
VW embedment strain gauge is embedded in the concrete structure to measure the effective strain that affect the concrete inside. This product can measure stress, distribution direction and trend of strain, etc. with the strain gauge in 2-4 directions using the Rosette Block. Also, non-stress strain gauge case can be used to compare and verify the non-stress condition with load applying condition in dam, bridge, subway structure, etc. which are required for long-term measurement by non-stress case.
Features
* Excellent reproducibility and responsiveness which is free from cable length or resistance change
* Perfect waterproof structure
* HIgh stability andn high sensibility
* High accurate NTC Thermistor mounted
* Perfect waterproof structure
* HIgh stability andn high sensibility
* High accurate NTC Thermistor mounted
Component
* VW strain gauge main body
* Cable
* Cable
Specification
| Model | SJ-2200 |
| Type | Vibration wire type |
| Measurement Frequency | 400 ~ 1,250Hz |
| Measurement strain range | Min 1,000 ~ Max 4,000με |
| Resolution | 1.0με |
| Accuracy | ±0.1% FSR |
| Non-linearity | ±0.5% FSR |
| Operation Temp. | -20°C ~ 50°C |
| Temp sensor | NTC Thermistor (3KD-ATF) |
| Temp senser operation range | Thermistor: -40°C ~ 80°C |
| Temp. sensor accuracy |
Thermistor: ±1°C |
| Main material | Stainless steel 300, Fluoro O-ring, High density epoxy potting |
| Waterproof capacity | 200m H2O |
| Cable | Ø5 mm, 0.215mm2 x 4C Shield PVC SYS cable |
Dimension
| Item | SJ-2200 | |
| Dimension | A(mm) | 155 |
| B(mm) | 153 | |
| C(mm) | 150 | |
| D(Ø)(mm) | 19 | |
| Weight | Main body : 0.06 | |
Cas Strain gauges has been manufactured based on international standard of NAS942, OIML and ASTM, and Cas has applied coding system to sort pattern, application, material and resistance of strain gauges.

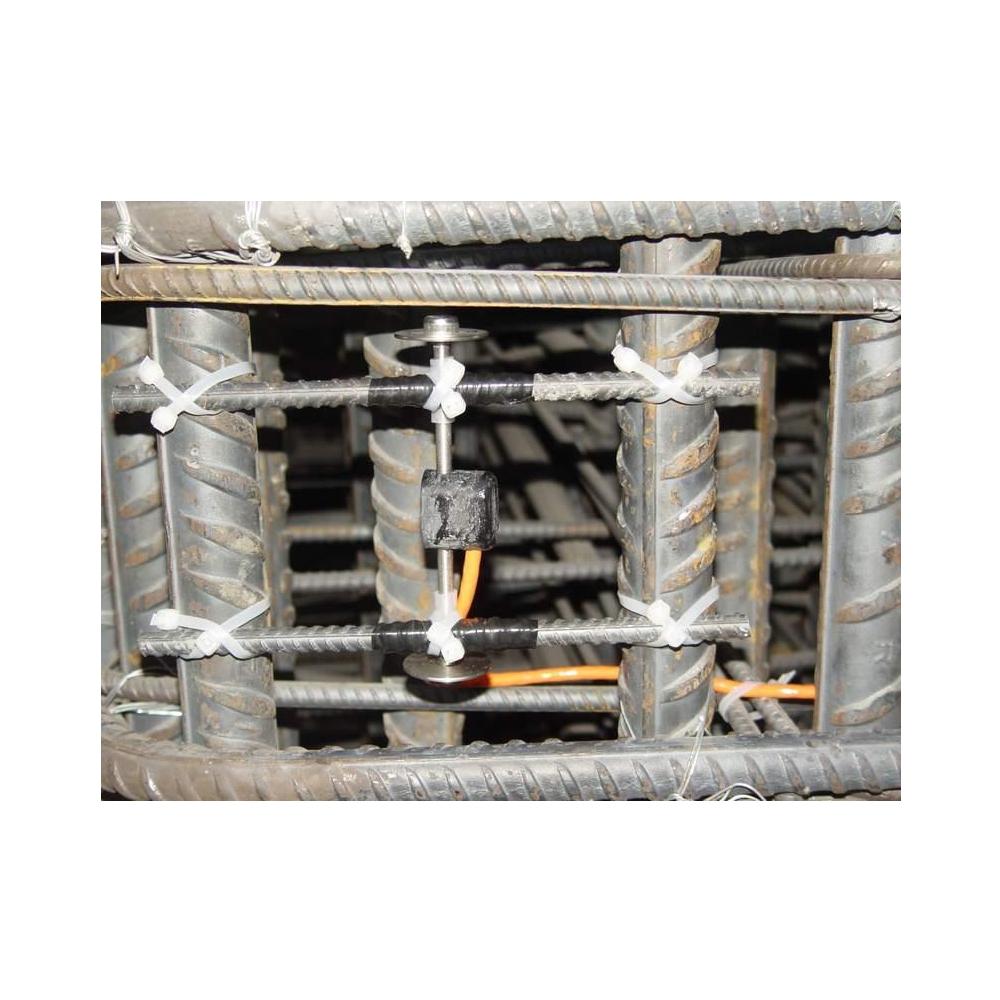

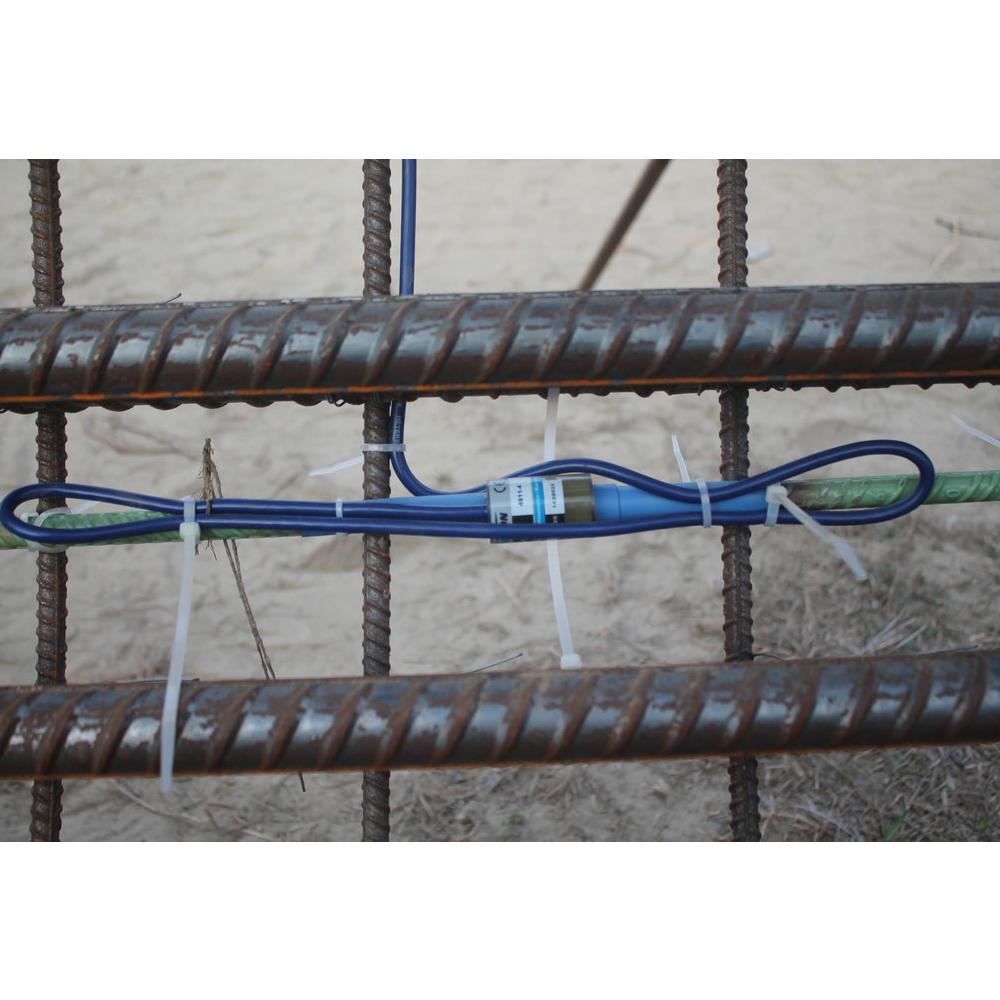

Installation
Multi direction stress measurement
