[Features]
BiOPTIC's Video & Data Link converts video signals from camera and Rs-232/422/485 data signals and transmits up to 120 km. It has the function of digital Mux/Demux, so various combinations of signals and Multi-Channels can be transmitted via one core of fiber line only. Multi-Channels video 1/2 ch & diverse distances (up to 120 km) are available. Module, standalone (panel), card type for 3U height chassis & 1U Rack type.
• Transmits Video, Data over 1 Fibers
• Supports RS 232,2 wire or 4 wire RS 422/485
• Power, Video, Data In/Out Fiber Status Sign on LED
• Video Input with AGC(Automatic Gain Control)
• Low power consumption
• Module, Standalone(Panel)?CCard Type
[Applications]
• CCTV, ITV, and ITS
• CATV System
• Security System
• Process Control System
• Monitoring System

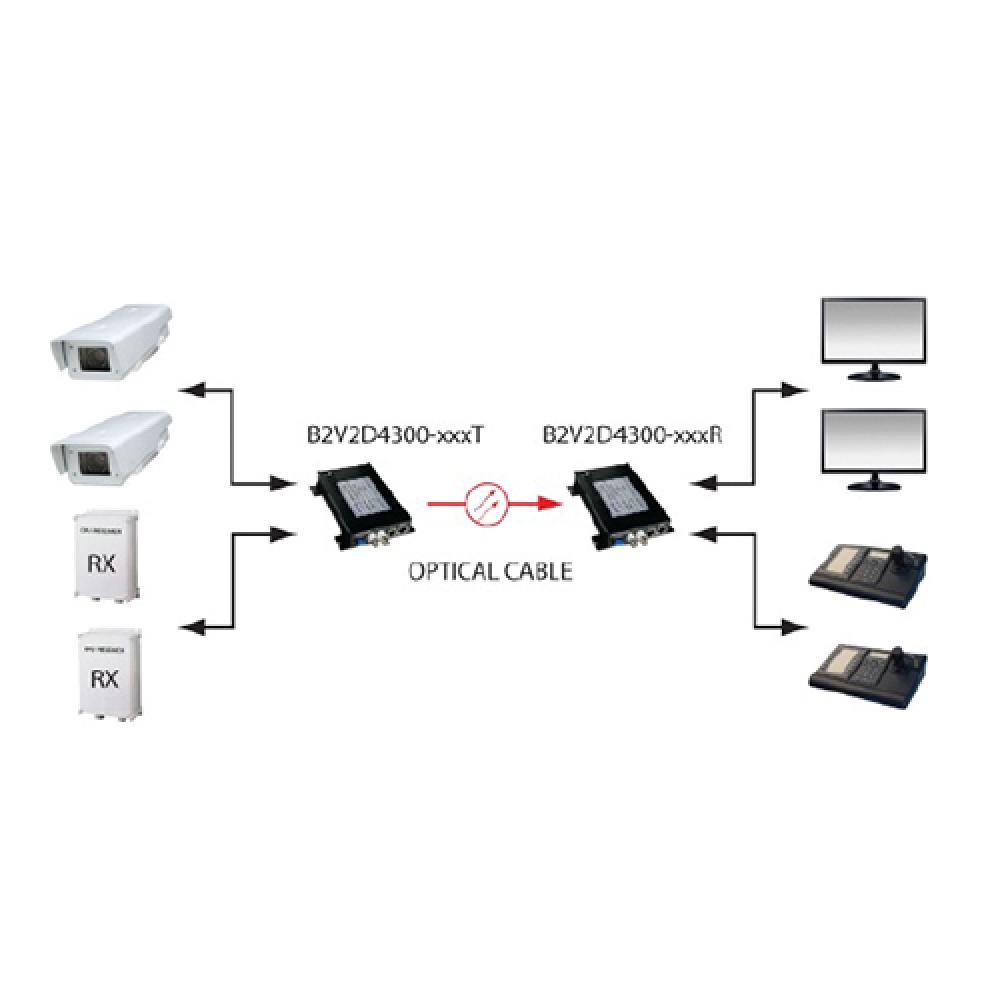

System Diagram
[Specifications]

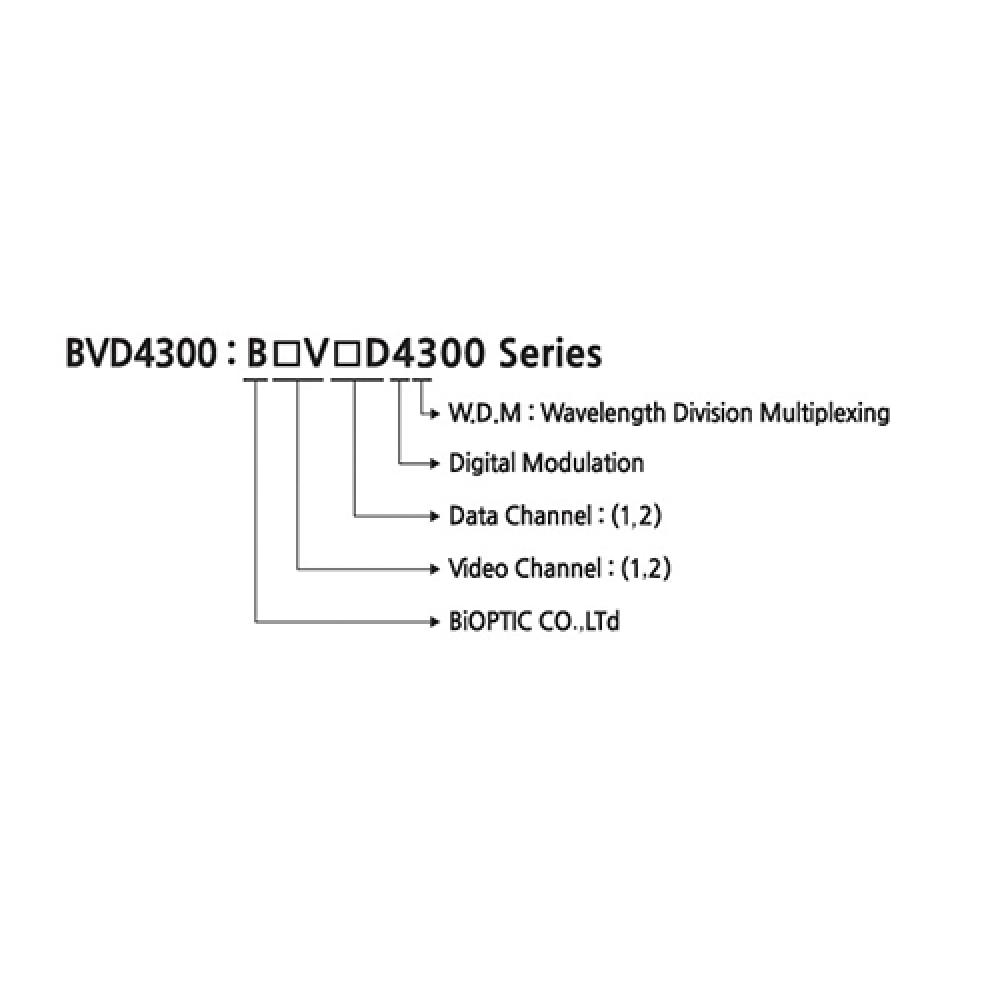

Order Information
