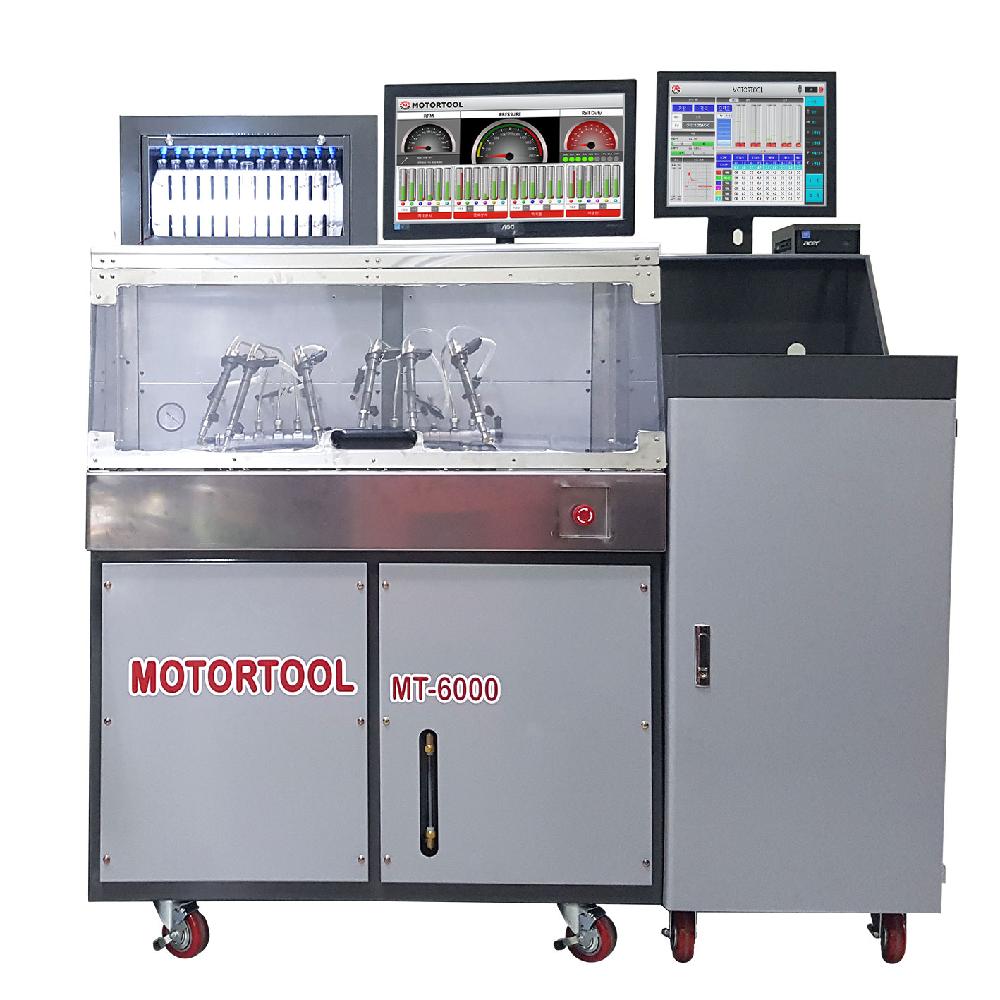

full image CRDI TEST BENCH MT-6000, COMMON RAIL INJECTOR TESTER, PIEZO ELEMENT TEST
MOTORTOOL

CRDI TEST BENCH MT-6000, COMMON RAIL INJECTOR TESTER, PIEZO ELEMENT TEST

  • Payment
    T/T
  • MOQ
    1 ea
  • Supply Ability
    20 ea per One-Time
  • Country of sale
    Asia, Americas, Europe, Middle East
  • PRICE

    • FOB

      Depend on quantity

ITEM SPECIFICS

  • Brand
    MOTORTOOL
    Model MT-4400
  • origin
    Republic of Korea
  • Size(Capacity)
    1320x600x1520(mm)


PRODUCT DESCRIPTION

MT-6000 (Injector tester specially for imported cars)




 Injector test, Magnetic coil test, Piezo element test, Delphi defective test






I-CRDI “MT-6000”











Automatic Load Cell Analysis






Full automatic beaker






Auto detection of injector and the measurement of resistance






Real-time check of fuel temperature








Real-time display of injector waveform






First test of Piezo element in Korea








First test of injector magnetic force in Korea






First test of circuit in Korea








Response test






Knocking test






Injection pattern test






Manual Mode








Domestic and overseas data support
(Automatic update)






Print of job results










Secondary display monitor







Various injector tester





  • Exclusive connector for each injector
  • Exclusive high pressure for each injector
  • Possible manual control of the injection
  • Precise measurement through load cell sensor
  • Equal accuracy despite through 10 times of measurements
  • Separate control system for 3rd to 6th generation of Bosch, Delphi, Siemens and Denso
  • Precise display of the knocking injection volume of Siemens
  • Precise display of the knocking injection volume of Delphi and Denso
  • Use of return connection nipple of Piezo
  • Support printing function
  • Air deflation function for installation of Piezo
  • Free control of voltage and current
  • Possible to generate voltage and current of all injectors in the world
  • Auto detection of Piezo injector
  • Resistance measurement and defective check of coil micro
  • Able to expand and reduce injector waveform
  • Real-time display of Piezo voltage waveform
  • Real-time display of Solenoid voltage waveform
  • Injector data input function
  • Function of generating injector standard value for domestic and imported cars
  • Preset standard value by injector type
  • Automatic diagnosis of defective injection by injector standard
  • Automatic record function of measured 6 injections




System





  • Real-time automatic upgrade through internet (MOTORTOOL’s server)
  • Automatic data upgrade of injectors
  • Quiet operation through application of motor control technology
  • Application of low current high pole motor
  • Possible conversion to various rail frequencies in the world.
  • Possible support for all kinds of common rails in the world
  • 4 wheels for easy movement
  • Adoption of purification system for less contaminants in the tank
  • Display temperature of fuel tank and rail
  • The use of convenient automatic beaker
  • The use of precise laboratory beaker
  • Easy touch screen control
  • Able to control operational condition via settings
  • LED work light for easy operation
  • Built-in fuel cooling device



SPECIFICATION

Product Name MT-6000
Injection Time 100㎲ – 1600㎲
Testable Injectors Bosch, Delphi, Denso, Siemens, Piezo (supports worldwide system)
Output 6 Channels
Cooling Forced cooling
Pressure 0-2000bar
Power 220V / 60Hz
Motor 3phase, 3HP, 6pole
Oil Tank 40L
Size 1620x750x1725 (mm)
